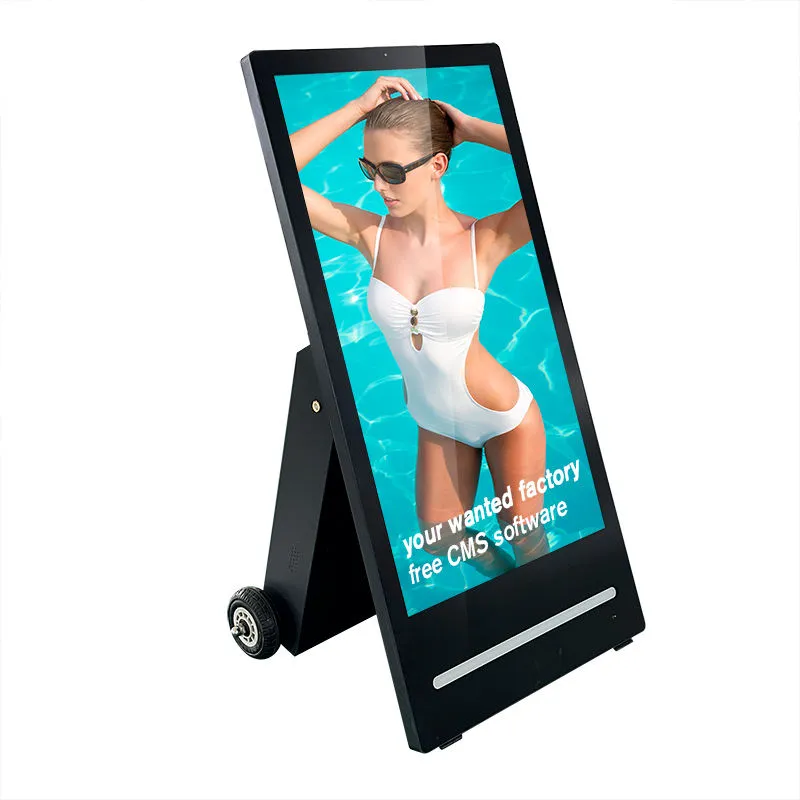

A cordless digital signage display that plays all day where no power outlet exists. LumiLink battery powered digital signage pairs a 1,800-2,000 cd/m2 sunlight-readable screen with a long-runtime blade battery: 14 hours of playback per charge, a 7-hour overnight recharge, and IP65 weatherproofing for year-round outdoor deployment. Wheeled, tiltable and manageable from your phone.
Lumi Link, a professional manufacturer of commercial display equipment, builds battery powered digital signage for one specific problem: the best advertising locations for battery operated outdoor advertising usually have no power outlet. Sidewalks, event entrances, market squares, stadium concourses and campus pathways were all off-limits for digital screens until cordless designs matured. Our rechargeable advertising screen line removes the cable entirely - a 40,000-50,000 mAh blade battery (depending on screen size) delivers 14 hours of continuous playback, and a single 7-hour overnight recharge prepares the unit for the next full day.
The range sits alongside our other outdoor digital advertising screens: cordless units for off-grid sites, fold-flat designs for mobile campaigns and classic pavement formats for shopfronts.
Three sizes cover the practical range for cordless deployment: 32-inch (40,000 mAh, 35 kg), 43-inch (50,000 mAh, 40 kg) and 55-inch (50,000 mAh, 65 kg). Every model shares the same off-grid architecture - a sunlight-readable panel rated at 1,800 cd/m2 (2,000 cd/m2 on the 55-inch), an IP65 galvanized-steel enclosure, and an ambient light sensor that trims power draw automatically as daylight fades. Content updates travel over Wi-Fi, optional 4G or a plain USB stick, so the screen never needs to come indoors for maintenance.
This page focuses on the two questions buyers actually ask: where can a cordless display realistically be deployed, and how do you separate genuine all-day battery claims from marketing numbers. The buying checklist and power-planning sections below give you the verification steps our own engineers use.
The economics of battery powered digital signage are easiest to see against the two alternatives it replaces: mains-powered screens and printed posters.
Against mains-powered portable screens, the cordless design eliminates three recurring costs. First, electrical work: an outdoor socket or floor trenching for a cable run typically costs more than the screen itself, and landlords rarely approve it. Second, trip-hazard compliance - a power cable across a public walkway is a liability issue in most jurisdictions, and some venues simply refuse plugged-in equipment on customer routes. Third, placement flexibility: a battery-powered unit follows the footfall. Morning at the station entrance, lunchtime by the food court, evening at the event gate - one screen covers three positions in a day, which a cabled unit cannot do.
Against printed posters, the rechargeable advertising screen wins on cycle cost. A venue that prints and installs new posters weekly spends steadily on printing, labor and disposal, while a digital unit plays unlimited campaigns from one CMS dashboard at a running cost of under 0.1 kWh per hour (our models draw no more than 100 W in playback and 3 W on standby). Over a 2-3 year service life at 60,000-hour panel rating, the per-campaign cost of digital approaches zero.
The one honest trade-off: battery models carry a higher purchase price than cabled equivalents of the same screen size. For static installations beside an existing outdoor socket, a cabled unit remains the cheaper choice. The battery pays for itself the moment placement flexibility, venue restrictions or electrical work enter the equation.
LumiLink foldable poster displays fo...
More
LumiLink A-frame digital boards mode...
More
LumiLink digital outdoor advertising...
MoreCordless operation moves the deployment map for battery operated outdoor advertising. These are the applications where cordless digital signage display units These are the applications where battery powered digital signage consistently outperform both printed media and cabled screens:
Events and exhibitions. Booth power at trade shows is often billed per socket per day, and power trunks across aisles violate most venue safety rules. A 43-inch cordless display on wheels rolls in with the exhibitor, plays the full show day on one charge, and rolls out at closing - no venue paperwork, no socket rental.
Markets and pop-up retail. Farmers markets, night markets and seasonal pop-ups run on temporary infrastructure. A rechargeable advertising screen deploys in minutes at the stall front, plays promotions all day, and folds into a van at pack-down. For market traders, the unit often doubles as a menu board and a brand screen.
Campuses and transport hubs. University pathways, ferry terminals and stadium concourses have strict cable policies and long operating days. Wheeled battery units are repositioned for class schedules, match days or service disruptions without calling an electrician - the ambient light sensor keeps them readable from morning shade to evening glare.
Construction and hoarding promotions. Project site entrances and construction hoardings are temporary by nature; permanent cabling is wasted spend. A cordless display advertises show apartments or wayfinding for the project duration, then moves to the next site.
Hospitality fronts. Restaurants, cafes and hotels place the screen on the pavement by day and roll it inside at night for security - exactly the daily cycle the 14-hour runtime and 7-hour overnight recharge were designed around. Two related formats cover the same pavement: the A-frame digital board for classic shopfront signage, and the foldable poster display for campaigns that must pack into a car boot between events.
Sunlight-readable panel with auto-dimming: the 1,800 cd/m2 panel (2,000 cd/m2 on the 55-inch) stays readable under direct midday sun, while an ambient light sensor continuously matches brightness to conditions - trimming power draw in shade and evening, which is a large part of how the 14-hour runtime is achieved, and cutting glare for passing viewers.
Wide-temperature architecture: the LCD module is treated for -50°C to 110°C operation with a wind-cooled heat-dissipation structure and an aluminum heat-spreading base plate. Cold-morning startups and heatwave afternoons that stall consumer-grade screens are handled by design, not by luck.
6 mm AR tempered glass: an anti-reflective laminated glass layer reduces sun glare on the screen surface and carries the impact rating for public, unattended placement.
Galvanized steel enclosure, IP65: the cabinet is full galvanized steel with an outdoor-grade powder coating - magnetic-proof, anti-static and sealed against dust and rain. Lockable battery-cabinet doors and keyed locks deter tampering in public areas.
Modular internal design: the player board, battery pack and display module are separate serviceable modules - a field swap takes minutes and keeps the total cost of ownership low over a multi-year service life.
Audio and I/O: a two-channel stereo amplifier drives external campaigns with sound when permitted; connectivity covers Wi-Fi, optional 4G, Ethernet and dual USB-HOST ports for plug-and-play playback from a stick.
Electrical protection suite: leakage, overload, over-voltage, over-temperature and lightning protection are built into the power path - the failure modes that matter most in outdoor, unmanned operation.
| Parameter | 32-inch | 43-inch | 55-inch |
|---|---|---|---|
| Panel Type | 32”LED Panel | 43”LED Panel | 55”LED Panel |
| Display Area | 697.8×392.2mm(W×H) | 943×531mm(W×H) | 1209.6×680.4mm(W×H) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Backlight | Patented modular LED backlight with constant-current driver | Patented modular LED backlight with constant-current driver | Patented modular LED backlight with constant-current driver |
| Resolution | 1080×1920 | 1080×1920 | 1080×1920 |
| Display Colors | 16.7M | 16.7M | 16.7M |
| Brightness | 1,800 cd/m², sunlight-readable | 1,800 cd/m², sunlight-readable | 2,000 cd/m², sunlight-readable |
| Contrast Ratio | 3,500:1 | 3,500:1 | 3,500:1 |
| Viewing Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) |
| Response Time | 5ms | 5ms | 5ms |
| Color System | PAL/NTSC/SECAM | PAL/NTSC/SECAM | PAL/NTSC/SECAM |
| Operating Lifetime | 60,000 hours | 60,000 hours | 60,000 hours |
| CPU | Cortex-A7, 1.2 GHz | Cortex-A7, 1.2 GHz | Cortex-A7, 1.2 GHz |
| Memory | DDR3 1GB | DDR3 1GB | DDR3 1GB |
| Storage | Up to 32GB TF card expansion | Up to 32GB TF card expansion | Up to 32GB TF card expansion |
| Decoding Resolution | Up to 1080P | Up to 1080P | Up to 1080P |
| Operating System | Android 7.1.1 | Android 7.1.1 | Android 7.1.1 |
| Network | 3G/4G, Ethernet, Wi-Fi, wireless peripheral expansion | 3G/4G, Ethernet, Wi-Fi, wireless peripheral expansion | 3G/4G, Ethernet, Wi-Fi, wireless peripheral expansion |
| Video Formats | 30+ formats: AVI, MKV, MP4, MOV, WMV, FLV, TS, 3GP, MPG, VOB etc. | 30+ formats: AVI, MKV, MP4, MOV, WMV, FLV, TS, 3GP, MPG, VOB etc. | 30+ formats: AVI, MKV, MP4, MOV, WMV, FLV, TS, 3GP, MPG, VOB etc. |
| Image Formats | BMP / JPEG / PNG / GIF | BMP / JPEG / PNG / GIF | BMP / JPEG / PNG / GIF |
| USB Interface | 2× USB HOST ports + 2× USB expansion | 2× USB HOST ports + 2× USB expansion | 2× USB HOST ports + 2× USB expansion |
| System Update | USB / SD card / remote OTA update | USB / SD card / remote OTA update | USB / SD card / remote OTA update |
| Battery Technology | Blade battery, long runtime, stable performance | Blade battery, long runtime, stable performance | Blade battery, long runtime, stable performance |
| Charging Time | 7 hours | 7 hours | 7 hours |
| Runtime per Charge | 14 hours | 14 hours | 14 hours |
| Battery Capacity | 40000 mAh | 50000 mAh | 50000 mAh |
| Input Voltage | 24V | 24V | 24V |
| Operating Temperature | -50°C ~ 110°C | -50°C ~ 110°C | -50°C ~ 110°C |
| Storage Temperature | -45°C ~ 80°C | -45°C ~ 80°C | -45°C ~ 80°C |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Power Input | AC100V ~ 240V | AC100V ~ 240V | AC100V ~ 240V |
| Power Consumption | ≤100W | ≤100W | ≤100W |
| Standby Power | ≤3W | ≤3W | ≤3W |
| Color Options | Silver / Grey / White / Black / Red | Silver / Grey / White / Black / Red | Silver / Grey / White / Black / Red |
| Enclosure Material | Galvanized steel + outdoor-grade powder coating | Galvanized steel + outdoor-grade powder coating | Galvanized steel + outdoor-grade powder coating |
| Certification | ISO9001, 3C, FCC, UL | ISO9001, 3C, FCC, UL | ISO9001, 3C, FCC, UL |
| Net Weight | 35Kg | 40Kg | 65Kg |
| Gross Weight | 38Kg | 48Kg | 87Kg |
| Product Dimensions | 990mm×148mm×448mm | 1236mm×148mm×588mm | 1400mm×148mm×756mm |
| Package Dimensions | 1100mm×300mm×600mm | 1350mm×300mm×700mm | 1580mm×345mm×930mm |
Size & Dimensions - engineering drawings with human-scale reference for all three models:
A full charge delivers 14 hours of continuous playback. The 32-inch model uses a 40,000 mAh blade battery; the 43-inch and 55-inch models use a 50,000 mAh pack. Because the ambient light sensor lowers brightness in shade and after dark, real-world runtime on mixed indoor-outdoor duty often stretches beyond the rated figure.
Seven hours from empty to full - designed as an overnight cycle. Roll the unit to its storage spot at closing, plug in the charger, and it is ready for the next full day of promotion in the morning.
Yes. Panels are rated 1,800 cd/m2 (32 and 43-inch) and 2,000 cd/m2 (55-inch) with 3,500:1 contrast, and the anti-reflective tempered glass suppresses surface glare. This is roughly twice the brightness of typical indoor-grade 700-nit battery signage.
The enclosure is IP65 rated - protected against dust ingress and rain jets - with a galvanized steel body and outdoor powder coating. Operating temperature spans -50°C to 110°C, so the unit handles winter mornings and summer heat that stop ordinary screens. As with any outdoor equipment, we advise bringing the unit in during extreme storms.
32-inch, 43-inch and 55-inch, all in portrait Full-HD 1080x1920 resolution. Engineering dimension drawings for all three sizes appear in the specifications section above, including folded-state footprints and human-scale reference.
Three routes: Wi-Fi or optional 4G through the cloud CMS for scheduled remote updates, USB plug-and-play for offline playback, or SD-card import. Playlists can mix videos, images and scrolling text, and OTA remote system updates keep the firmware current.
No more than 100 W during playback and 3 W on standby, fed from AC100-240V mains during charging. One full charge stores roughly 1-1.2 kWh of usable energy - the electricity cost of a daily cycle is a few cents.
Yes. All three sizes ride on built-in wheels with a pull handle; the 32-inch model weighs 35 kg, the 43-inch 40 kg and the 55-inch 65 kg. The tilt angle of the screen is also adjustable, so the display face can be leveled after positioning.
Manufacturing is certified under ISO9001, 3C, FCC and UL. Two years of warranty on the full unit with lifetime technical support; replacement parts remain available for 5+ years after purchase.
Planning a cordless deployment comes down to three numbers from the specification table: runtime, recharge time and power draw. Here is how they combine into a working day.
Runtime: 14 hours per charge. The blade battery stores 40,000 mAh (32-inch) or 50,000 mAh (43/55-inch) at 24V. A standard retail day of 08:00-22:00 fits inside one charge with margin; a 24-hour deployment needs a midday top-up or a second battery-equipped unit rotated in.
Recharge: 7 hours, overnight. The charge-to-run ratio is 1:2 - seven hours on the charger buys fourteen hours on the street. In practice the unit charges while the venue is closed, so the screen never misses trading hours.
Draw: ≤100 W playback, 3 W standby. A full day of playback consumes about 1.2 kWh - comparable to a desktop computer left on for the day. Where venues meter power per socket (exhibition halls, markets), this tiny draw is worth quoting: even if a socket is available, the unit can run cordless and top up only when convenient.
The auto-dimming effect. The ambient light sensor is not only an image-quality feature; it is the main reason the rated runtime is honest. Backlight power scales with brightness, so the screen sips power in shade, at dusk and indoors, reserving full 1,800-2,000 cd/m2 output for direct-sun hours when it is actually needed.
The cordless signage market spans serious engineered units and rebadged indoor screens with a battery strapped on. Before ordering any battery powered digital signage, verify these six points - the same checklist our B2B buyers use:
1. Rated brightness, not "outdoor-ready" labels. Many battery models on the market run 700-1,500 cd/m2 panels. Under direct sun, anything below roughly 1,500 cd/m2 washes out at midday. Ask for the panel datasheet figure; ours are 1,800 and 2,000 cd/m2 with the sensor data to match.
2. Runtime methodology. "Up to 14 hours" means nothing without conditions. Ask at what brightness the runtime was measured and whether auto-dimming was active. A 14-hour claim at 30% brightness is a 6-hour claim at full sun - we rate 14 hours with the light sensor enabled because that is how the unit is actually operated.
3. Battery chemistry and protection. A blade battery with an integrated management circuit (over-charge, deep-discharge, temperature) is the difference between 1,000+ stable cycles and a swelling pack after one hot summer. Ask for the battery capacity in mAh per size, not just "long-life lithium".
4. IP rating of the whole cabinet. IP54 on the front panel only means the rear electronics - including the battery - are exposed. Demand the enclosure rating for the complete cabinet; ours is IP65 across the unit.
5. Temperature range. A battery that stops at 0°C fails the winter deployment you bought it for. The rated operating envelope should cover both extremes of your climate; ours spans -50°C to 110°C with wind-cooled heat dissipation.
6. Weight, wheels and wind stability - the practical limit of portable digital signage with wheels. Portability and stability trade against each other: too light and the unit topples in gusts, too heavy and nobody moves it. Check the base design, wheel locks and whether the screen tilt is adjustable for leveling on uneven pavement.
How LumiLink battery powered digital signage compares with typical market units:
| Specification | Typical battery signage on the market | LumiLink battery powered digital signage |
|---|---|---|
| Brightness | 700 - 1,500 cd/m2 | 1,800 cd/m2 (32/43-inch) / 2,000 cd/m2 (55-inch), 3,500:1 contrast |
| Runtime per charge | 8 - 14 hours (often stated at reduced brightness) | 14 hours with auto-dimming, 40,000-50,000 mAh blade battery |
| Recharge | 6 - 8 hours | 7 hours overnight; 1:2 charge-to-run ratio |
| Ingress protection | IP54 - IP56, sometimes front panel only | IP65 across the full galvanized-steel cabinet |
| Operating temperature | -10 C to 50 C | -50 C to 110 C with wind-cooled heat dissipation |
| Screen resolution | 1080 x 1920 portrait | 1080 x 1920 portrait, 178/178 viewing angle |
| Content management | App or USB on most units | Cloud CMS over Wi-Fi/4G + USB plug-and-play + OTA updates |
| Certification | Varies | ISO9001, 3C, FCC, UL |
Delivering Sunlight-Readable, All-Weather Digital Signage to Global Brands
Established in 2014, Shenzhen Lumi Link Technology Co., Ltd. is a modern high-tech manufacturer focusing on intelligent display equipment. We specialize in professional consoles, digital outdoor advertising screens, and integrated command center solutions for a global client base.
Our core product line covers High-Brightness Outdoor LCD Displays for DOOH advertising, Sunlight-Readable Window Displays for retail storefronts, and durable Outdoor Digital Signage Totems for transit and smart city projects. We also offer bespoke Double-Sided Advertising Screens that maximize visibility from both directions of pedestrian flow.
With ISO 9001 certification and a dedicated R&D team, we provide full OEM/ODM services. From IP65 weatherproof enclosures for coastal cities to 5,000-nit panels for equatorial markets, our digital outdoor advertising screens are exported globally to over 50 countries.
10+ years of industrial experience
1000+ successful project cases
Shipping to 50+ countries and regions
200+ Achievement customers
20+ Technical patents
5000sqm production base
Battery claims deserve arithmetic, not adjectives. Here is the full calculation behind our 14-hour rating, using nothing you cannot verify from the specification table above.
Energy stored. The 43/55-inch pack holds 50,000 mAh at 24V - about 1,200 Wh nominal. The 32-inch pack holds 40,000 mAh at 24V - about 960 Wh.
Power consumed. Playback draw is capped at 100 W for the whole system: panel backlight, Android player board (Cortex-A7, 1.2 GHz), decoder and amplifier. At full backlight the theoretical floor is 1,200/100 = 12 hours for the large packs - before any power saving.
Where the extra two hours come from. The ambient light sensor trims backlight output whenever full sun is not hitting the panel - evenings, mornings, overcast hours, indoor repositioning. Backlight is the dominant load, so even a modest average dimming of 15-20% across a mixed day returns the 12-hour floor to the rated 14 hours. This is also why we publish the rating as "14 hours with auto-dimming" rather than a full-brightness figure we would have to walk back later.
Standby discipline. Between campaigns, the unit idles at 3 W - a quarter of a thousandth of the daily energy budget. Scheduling playlists to sleep overnight (which the CMS handles automatically) keeps even multi-day unattended deployments within one charge cycle plus a scheduled top-up.
When you compare vendors with this method - pack watt-hours divided by system wattage, then adjusted for dimming - the honest claims separate from the inflated ones quickly.
A cordless screen still needs a content workflow, and removing the power cable should not mean removing connectivity. The rechargeable advertising screen runs Android 7.1.1 with three content routes:
Cloud CMS over Wi-Fi or 4G. The primary route for fleets: schedule playlists per unit, per daypart and per location from one dashboard, push updates over Wi-Fi or the optional 4G module, and monitor playback status remotely. Multi-site operators run city-wide campaigns without visiting a single screen.
USB plug-and-play. For sites without reliable connectivity - markets, rural events, construction sites - export the playlist to a USB stick, insert it, and the player syncs and loops the content. Updating a market stall screen takes under a minute on arrival.
OTA system updates. Firmware and player software update remotely, so a deployed fleet stays current without recall. The system supports 30+ video formats (AVI, MKV, MP4, MOV, WMV, FLV, TS and more), common image formats and scrolling text, with storage expandable to 32GB via TF card.
Together with 178°/178° viewing angles and the auto-rotating orientation, one unit serves portrait video, mixed media playlists and split-screen layouts without touching the hardware.
Off-grid hardware lives a harder logistics life than office screens, so the packaging and support chain matters as much as the specification sheet.
Export-grade packing. Each unit ships in a foam-lined carton sized to the folded footprint - 1100×300×600 mm for the 32-inch (38 kg gross), 1350×300×700 mm for the 43-inch (48 kg) and 1580×345×930 mm for the 55-inch (87 kg). Batteries travel with certified packing documentation for air and sea freight.
Factory-direct supply. Lumi Link manufactures in-house under ISO9001, with 3C, FCC and UL certification on the product line. Standard colors are silver, grey, white, black and red, and the modular cabinet design means spare player boards, battery packs and panels ship as drop-in modules rather than whole-unit returns.
After-sales. Two years of warranty on the full unit, lifetime technical support, 24-hour response on weekdays, and replacement parts available for 5+ years after purchase. Whether you need one wheeled unit for a storefront pilot or a fleet of cordless displays across multiple cities, the deployment team helps you plan runtimes, charging schedules and CMS structure before the first screen ships.
