Three Board Formats and Where Each One Belongs

Buyers usually arrive thinking there is one product here. There are three, and picking the wrong one is the most common and most expensive mistake in this category.

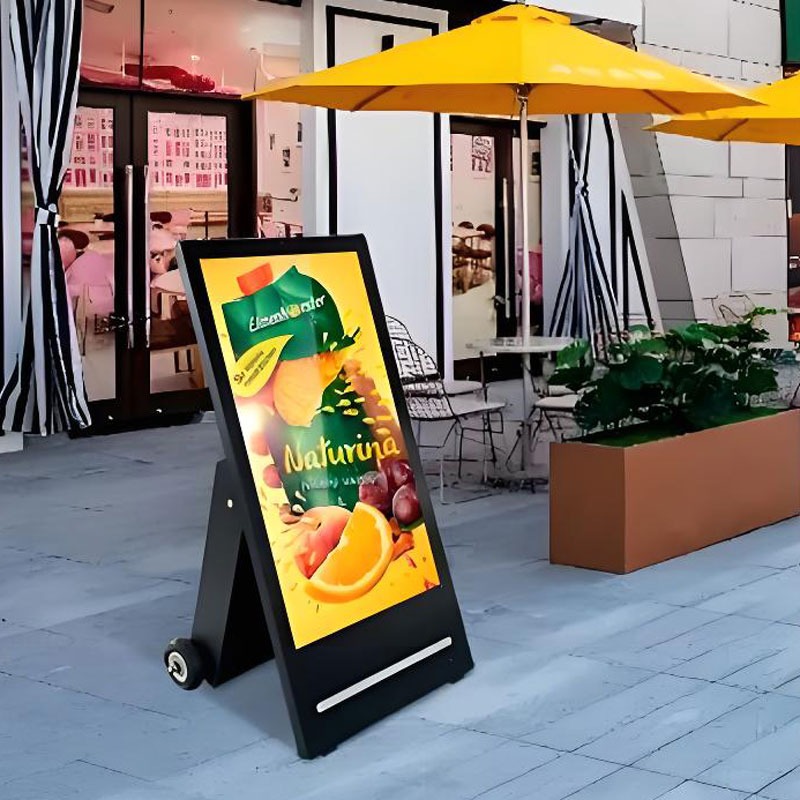

The double-sided A-frame is the classic street board translated to glass. Two faces mean a message that reads in both walking directions, which suits a spot where pedestrians arrive from left and right - a mid-terrace shop on a shopping street, a restaurant between two crossings. The price of two faces is stance width: the folding legs need room, and on a narrow footway that is exactly the space you do not have.

The single-sided display stand trades the second face for a footprint. One panel on a rigid frame can be stood against the window line or beside a doorway, angled into the direction people actually approach from. On tight urban pavements, and wherever a clear route matters more than a second face, this is the honest choice - and it is the format many city-centre premises settle on after a first season with an A-frame.

The foldable poster board solves a logistics problem rather than a visibility problem. It collapses flat, rolls on castors and lives in a back room overnight. Choose it when the board cannot stand outside after closing hours, or when the storage space behind the counter is measured in centimetres. The foldable poster display article covers the transport side in detail.

All three share the same electronics, the same battery platform and the same CMS, so specifying a sidewalk digital sign is genuinely about the footway - not about compromising on the screen.

Explore LumiLink's Products

What the Panel Has to Do in Daylight

A pavement advertising board is read in the worst light a screen ever faces: full daylight, often with the sun in front of the panel, at a viewing distance of two to six metres. Three specifications decide whether the message survives that.

Brightness. The range runs 1,800 cd/m2 on the 32 and 43-inch models and 2,000 cd/m2 on the 55-inch. That is roughly double what an indoor-grade portable screen produces, and it is the number that keeps white text legible on a bright day rather than a grey smudge. Buyers should ask for the panel figure in cd/m2 and be suspicious of any spec sheet that lists brightness without a unit.

Contrast. 3,500:1 contrast is what separates a promo that reads from one that merely glows. High brightness without contrast produces a washed-out image in direct sun, because the dark parts of the picture rise with the backlight.

The glass in front. The panel sits behind tempered glass with an anti-reflective finish. Tempered glass is there for the knocks of pavement life - trolleys, bicycles, the occasional gust-blown sign - and the coating is there because a bare glossy screen reflects the sky and the shopfront behind the reader. The two together are what make a screen readable at a sharp angle rather than only head-on.

A useful field test before buying a street advertising display board: stand where a customer would stand, at midday, with the panel switched on. If the content reads at that distance and angle, the specification is adequate for the site. If it does not, no amount of content design will fix it.

FAQ about pavement advertising boards

Pavement Advertising Board Buying Checklist

Most disappointing deployments fail on a measurement or a permission, not on a circuit board. The list below is the sequence worth following before money changes hands.

• Measure the clear route first. Walk the footway with a tape and confirm the clear through-route you can leave - accessibility codes generally look for about 36 in / 915 mm, and city centres may ask for more.
• Match the stance to the spot. A double-sided board on a 3 ft pavement is a complaint waiting to happen; a single-sided stand fits the same frontage without narrowing the route.
• Confirm the brightness figure, not the claim. Ask for the panel rating in cd/m2 and a contrast figure. The range runs 1,800 cd/m2 on the 32 and 43-inch models and 2,000 cd/m2 on the 55-inch.
• Check the ingress rating. IP65 dust sealing and rain-jet protection is the working minimum for a unit that stays out in a European or North American winter.
• Ask how the battery is replaced. A pack that swaps as a module keeps a two-year-old board in service; a sealed pack turns the whole cabinet into a consumable.
• Test the update route you will actually use. Cloud CMS over Wi-Fi or 4G for managed sites, USB plug-and-play for the ones with no signal at all.
• Get the packing dimensions. Boards ship folded; the carton size decides your storage and freight cost, not the open footprint.
• Confirm spares availability. Castors, struts, handles and the battery pack are the parts pavement duty wears first - ask how long they stay available after purchase.

Run the list against the actual pavement, with a tape measure in hand, and the specification writes itself: the stance that fits, the panel that reads at the distance, and the battery that covers the trading day. Buyers who start from the electronics usually end up re-buying the cabinet.

Weather, Wind and What Wears Out First

Pavement duty is the hardest life in the display catalogue: rain, salt, grit, sun, traffic vibration and the occasional collision. The specification answers each in turn.

Water and dust. IP65 sealing means the cabinet is dust-tight and protected against rain jets from any direction. In practice, the seal on the port cover and the battery compartment are the parts that keep the rating honest after a year of daily opening and closing, which is why both are designed as serviceable modules.

Temperature. The operating window runs from -50 C to 110 C, so a northern winter or a southern summer sits inside design intent rather than at its edge. The battery chemistry is chosen for that range; consumer-grade packs lose capacity well before these limits.

Wind and stability. Wind is the failure mode buyers underestimate. A 35-65 kg unit with a wide stance and rubber foot pads stays put in gusts that would lay a printed board flat, and the rear port panel and screen lock are both shielded from direct wind load when the unit is folded and stored.

What wears out first. In order: castors, gas-spring struts, the battery pack, then the panel. All four are replaceable without returning the cabinet, which is the difference between a board that serves five years and one that is scrapped when its first wear part fails.

Content Workflow Across a Fleet of Boards

A board is only as good as the routine behind it, and the routine is where the cloud CMS earns its place.

One library, many boards. Creative is authored once and assigned per unit, so a group with a dozen frontages runs one campaign calendar instead of a dozen. Playlists support 1, 2, 3, 4 and multi-zone layouts, which lets a single screen carry a promo video, a price block and a scrolling hours ticker at the same time.

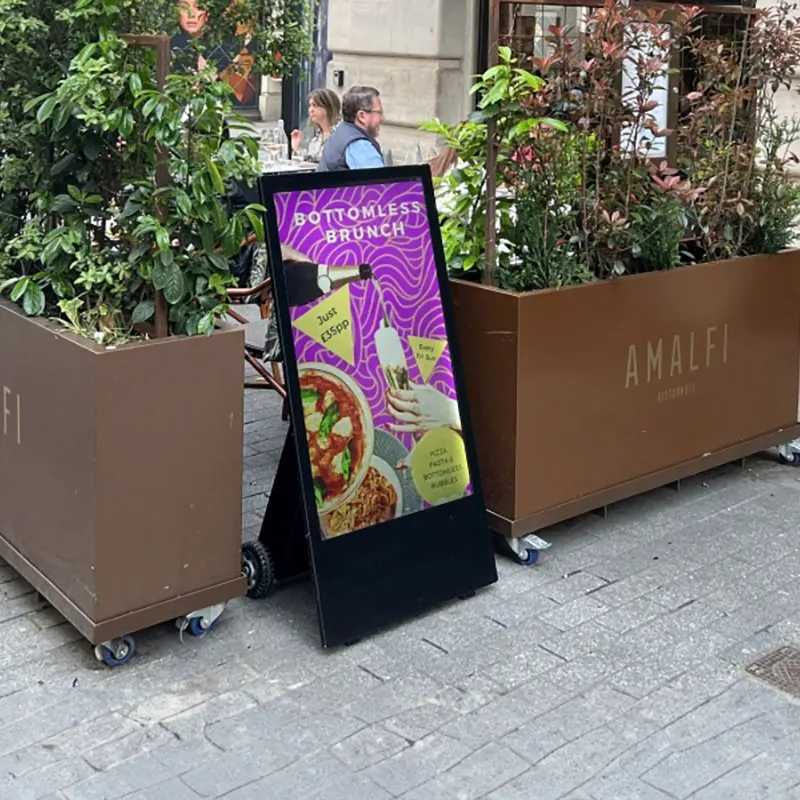

Dayparting does the work. Breakfast creative until eleven, a lunch offer until four, an evening promotion after that - scheduled once and repeated daily. It is the capability a printed board can never have, and on a food street it is the reason the screen outsells the laminate.

Playback status is visible remotely. The dashboard reports what each unit is playing, so a dark screen is noticed by the operator rather than by a customer. Firmware updates arrive over the air, playback covers 30+ video formats, and storage expands to 32GB - enough for a season of creative with room to spare.

Because the CMS is shared across the portable range, the layout built for a pavement board deploys unchanged to the wheeled and foldable formats - one content pipeline serving the whole street presence.

Global Delivery, Packaging & After-Sales Support

Street hardware spends more of its life in transit and in weather than most display categories, so packaging and spares are part of the specification.

Export-grade packing. Each unit ships in a foam-lined carton sized to the folded posture, with the battery documented for air and sea freight. Standard cabinet colours are silver, grey, white, black and red, with custom colours and branding available for chain rollouts.

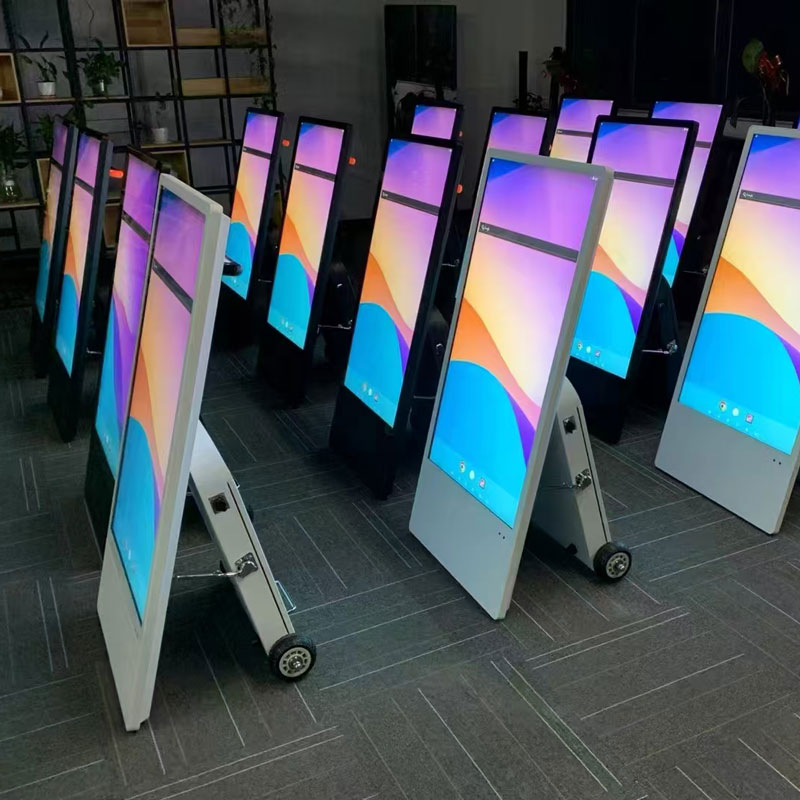

Factory-direct supply. Lumi Link manufactures in-house under ISO9001 with 3C, FCC and UL certification, and supplies container volumes as readily as single evaluation units. Colours, branding, packaging artwork and firmware defaults can all be specified at order stage.

Support after the sale. Two years of warranty on the full unit, lifetime technical support with 24-hour weekday response, and replacement parts available for 5+ years. For a first deployment the team will review the placement plan - footway clearance, sightlines and the charging routine - before the units ship.
