Located in the Haute-Savoie region of southeastern France, Évian-les-Bains sits on the southern shore of Lake Geneva (Lac Léman) at the foothills of the French Alps. Globally renowned as the birthplace of natural mineral water and an upscale spa destination, the town attracts international travelers, seasonal residents, and local citizens throughout the year.
To modernize municipal public messaging, support regional agriculture, and reduce printed paper waste, the municipal administration (Ville d'Évian) launched an initiative to deploy smart outdoor digital signage at high-footfall public venues.
A prime deployment location was identified at the lakeside promenade near the Port d'Évian. Every Wednesday, this thoroughfare hosts the town's signature open-air event—Le Grand Marché des Producteurs—gathering regional growers, artisans, and vendors selling fresh local produce from 08:00 to 18:00.

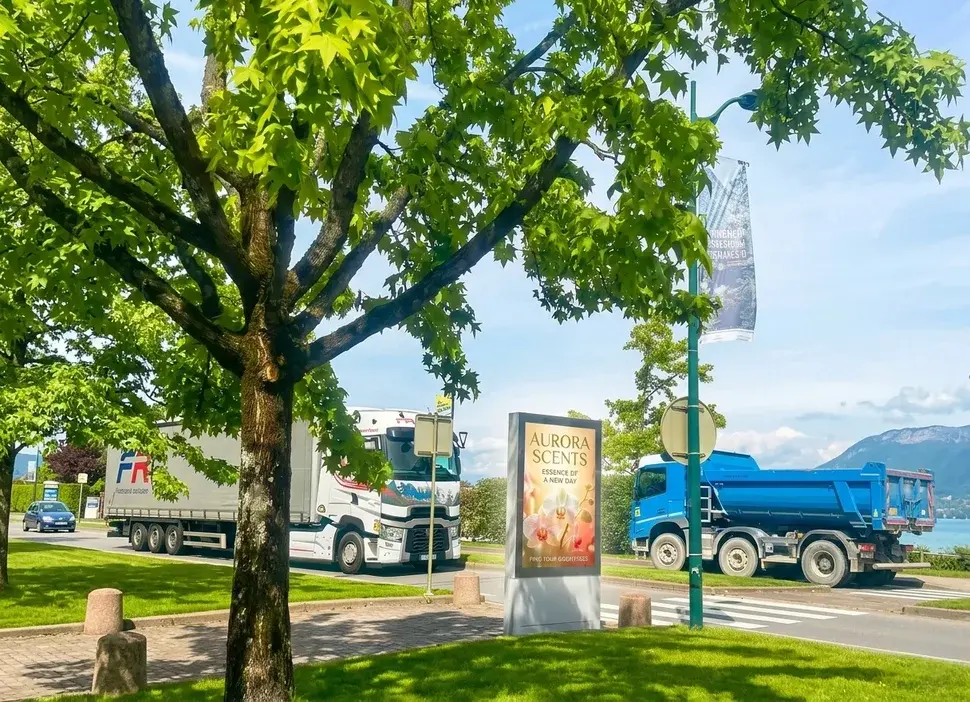

The municipality required a commercial digital totem capable of displaying vibrant market campaigns, environmental notices, and tourist wayfinding under full sun, while withstanding lakefront humidity and alpine temperature swings. Ten units of the Lumi Link LL-HBS Series high-brightness outdoor digital totem were selected and installed at eye level along the promenade.
Deploying digital signage in an open lakeside environment required the hardware to overcome several demanding physical conditions simultaneously.
The open surface of Lake Geneva acts as a giant mirror. Sunlight reflecting off the water combines with direct alpine sunlight to create extreme specular glare, washing out conventional screens. At the same time, pedestrians approach the displays from oblique angles, demanding wide-viewing-angle performance.
Under direct summer sun, the front surface of a standard display can exceed 75°C. At this temperature, ordinary liquid crystal panels suffer irreversible blackening, gradually developing dark patches that destroy readability and permanently damage the panel.
The alpine microclimate produces large diurnal temperature swings between dawn and midday. Moisture-laden lake air condenses inside conventional air-gap screens, causing internal fogging that clouds the image and requires frequent servicing.
As an environmentally protected resort town, Évian restricts disruptive maintenance activity along the lakeside promenade. Traditional fan-cooled screens with replaceable air filters were therefore unsuitable—they demand periodic on-site filter changes and emit ongoing fan noise.
To meet these conditions, the LL-HBS Series combines a high-output direct backlight with advanced optical bonding and a fully sealed thermal architecture. Its engineered stack is built in five functional layers:
Sunlight-Readable Direct LED Backlight: The LL-HBS unit delivers 2,500 nits of continuous brightness combined with a high 1200:1 contrast ratio. This ensures that the colorful artwork of the Grand Marché des Producteurs retains its color saturation, deep contrast, and sharp detail, even under intense alpine midday sun and lake reflections.
Intelligent Auto-Dimming Control: An integrated optical sensor continuously reads ambient daylight levels. It drives the backlight to maximum output during bright noon peaks and lowers it during overcast weather, twilight, and night hours. This automated regulation cuts overall energy consumption by up to 35%, supporting Évian's municipal sustainability goals.
Immunity to Solar Clearing: The LL-HBS Series features an industrial-grade wide-temperature liquid crystal panel with a phase-transition threshold (High Tni) rated up to 105°C to 110°C and an operating range of -20°C to +50°C. Even during prolonged exposure to direct solar heat, the liquid crystals remain fully stable, eliminating the risk of black spots.
99.99% UV Rejection: A specialized optical UV-blocking film rejects 99.99% of ultraviolet rays, preventing the internal polarizing filters and color resins from fading, yellowing, or deteriorating over years of service.
30% Contrast Enhancement: Unlike conventional air-gap assemblies, the LL-HBS Series bonds the 5mm ultra-clear tempered protective glass directly to the LCD surface using German Wacker liquid optical polymer adhesive. Matching the optical refractive index eliminates internal reflections, boosting visual contrast and clarity by 30%.
Zero Condensation and Permanent Defogging: Because the optical adhesive eliminates the internal air chamber, moisture and airborne particulate matter cannot enter the display face, preventing internal glass condensation even during rapid alpine temperature shifts.
All-Weather Ingress Protection: The enclosure carries a certified IP66 rating, completely sealing out rain, lake spray, dust, and airborne particulates.
Closed-Loop Cooling with No Filters: Internal heat exchangers paired with IP67 waterproof fans circulate air within a sealed chamber. There are no air filters to replace and no internal cleaning required, which satisfies the municipality's restriction on disruptive maintenance along the protected promenade.
Laser-Engraved Municipal Identity: Designed with an ultra-slim 18mm bezel and a custom matte-grey finish, the unit features a pedestal laser-etched with the official coat of arms and the title "Ville d'Évian Eau Minérale", matching the architectural character of the lakeside promenade.
Centralized CMS Control: Powered by an industrial 8-core processor running Android, municipal staff can schedule promotional content, broadcast emergency weather alerts, and monitor hardware metrics remotely over local Wi-Fi or Gigabit Ethernet without on-site visits.
Measurable Footfall Growth for Local Farmers: The eye-level 2,500-nit digital display showcases colorful graphics of fresh local cheeses, fruits, vegetables, and wines, attracting pedestrians and lakefront visitors toward the Wednesday market. Local agricultural vendors noted higher foot traffic and direct sales growth.
Zero Downtime and Low Total Cost of Ownership (TCO): Through multiple summer heatwaves and damp winter lakefront conditions, the installation has maintained 24/7 continuous operation without thermal shutdowns, glass fogging, or hardware faults. Eliminating regular filter replacements has lowered municipal operating expenses.
Enhanced Civic Pride and Smart City Image: The installation combines modern optical engineering with historical French lakeside architecture, creating a clean civic landmark that keeps residents informed while reinforcing the town's image as an eco-conscious smart resort.
Display Sizes Available: 32", 43", 49", 55", 65", 75", 86"
Native Luminous Output: 2,500 nits (cd/m²)
Contrast Ratio: 1200:1
Viewing Angle: 178° Horizontal / 178° Vertical (IPS Wide Viewing Technology)
Panel Thermal Threshold: High Tni 105°C / 110°C (Anti-Solar Blackening)
Front Glass & Optical Bonding: 5mm Ultra-Clear Tempered Glass with German Wacker Optical Adhesive (Zero Air Gap, Anti-Fog, 99.99% UV Blocking)
Operating Ambient Temperature: -20°C to +50°C (Panel storage: -20°C to +70°C)
Ingress Protection Rating: IP66 Certified Enclosure with IP67 Waterproof Heat Exchanger Fans
Thermal Management: Closed-loop isolated airflow, filterless, maintenance-free design
Operational Lifetime: 50,000 Hours (24/7 continuous duty cycle)
Processing Architecture: 8-Core A55 CPU, Android OS, 2GB RAM + 32GB Storage
Input / Output Interfaces: HDMI In, USB, RJ45 Gigabit LAN, Integrated Wi-Fi
The project uses LL-HBS-55 (10) installed at Évian-les-Bains, France.
A typical single-unit installation takes one to two hours including cabling and network configuration. Multi-unit projects are completed within one working day.
Yes. The tempered glass surface is sealed against liquids and can be wiped with a standard damp cloth; no special cleaning agent is required.
All tables carry a standard warranty with optional extension. Spare panels and control boards are stocked for long-term service.
