UK motorway service stations serve millions of travelers, commercial drivers, and commuters every week. Featuring major food and beverage franchises, retail stores, and refueling stations, the open-air entrance plaza is the prime spot for DOOH dynamic media and promotional campaigns.
However, operating outdoor digital signage in this setting presented severe challenges:
Direct Solar Glare & Washout: During bright daylight hours, ambient sunlight severely reduces readability on standard commercial screens. Direct solar radiation can also heat standard panels beyond their operating limits, causing irreversible liquid crystal blackening (solar clearing failure).
Harsh, Unpredictable British Weather: Open rest areas are directly exposed to relentless driving rain, morning condensation, dust, road grit, and fluctuating temperatures ranging from sub-zero winters to hot summers.
High Maintenance Overheads: Operating around the clock (24/7/365) in remote locations requires rock-solid hardware reliability. Traditional fan-cooled displays with air filters require frequent on-site filter replacements and dust cleaning, creating unacceptable labor expenses and downtime.
To overcome these barriers, the site operator deployed the Lumi Link LL-HBS Series—an all-in-one, ultra-high-brightness commercial LCD display solution engineered specifically for harsh outdoor and high-ambient-light applications.
The LL-HBS Series is powered by a high-efficiency LED backlight module producing an impressive 3,000 nits of sustained luminous output. This ensures visual clarity, rich color saturation, and sharp contrast even under direct, unshaded sunlight.
Integrated Ambient Light Sensor: The built-in smart sensor continuously detects external lighting levels and automatically adjusts display brightness in real time. This delivers peak visibility at noon while softening brightness during twilight and nighttime, reducing power consumption and preventing driver glare.
Anti-Blackening High Tni Panel: Conventional displays develop dark patches when front screen surface temperatures exceed 75°C. The LL-HBS Series utilizes industrial-grade liquid crystal panels featuring a High Tni of 105°C, ensuring zero screen blackening under direct sunlight and high solar heat loads.
Advanced Optical Bonding (German Wacker Polymer): By eliminating the internal air gap between the 5mm ultra-clear tempered glass and the LCD panel using German Wacker liquid optical adhesive, internal reflections are eliminated. This boosts visual contrast by 30% and permanently prevents internal glass fogging or condensation during high-humidity days.
99.99% UV-Resistant Shield: An advanced optical surface coating filters out 99.99% of damaging ultraviolet rays, protecting the internal polarizing filters and liquid crystal polymers from premature yellowing and aging.
All-Weather Ingress Protection: Built with an anti-corrosion galvanized aluminum chassis finished with outdoor-grade electrostatic powder coating, the LL-HBS enclosure achieves a certified IP66 rating, completely repelling rain, snow, dust, and particulate pollutants.
Maintenance-Free Closed-Loop Cooling: Equipped with internal heat exchangers and IP67-rated waterproof fans, internal electronic components remain sealed in a clean, dust-free chamber. There are no air filters to replace and no internal servicing required, vastly lowering long-term operational costs.
Powered by a high-performance 8-core processor and Android OS, the units integrate seamlessly with cloud CMS platforms via Gigabit LAN and Wi-Fi. Operators can remotely update promotions, schedule dynamic dayparting menus, and monitor device health in real time.
Designed for mission-critical operations with an industrial MTBF of 50,000 hours of continuous 24/7 service.
Unrivaled Passenger Engagement & Footfall Conversion:
The vibrant 3000-nit displays showcase restaurant promotions, specialty coffee deals, and commercial campaigns with visual clarity visible from over 30 meters away. Retail tenants reported measurable upticks in footfall and drive-thru sales conversion.
Minimal Total Cost of Ownership (TCO):
The combination of automated light dimming and a maintenance-free, filterless enclosure cut routine on-site service trips by over 80%, saving thousands of pounds in annual operational upkeep.
Flawless All-Season Durability:
From freezing, damp winter mornings to scorching summer afternoons, the LL-HBS displays operated continuously without condensation, thermal shutdown, or solar black spots.
Display Sizes Available: 32", 43", 49", 55", 65", 75", 86"
Native Brightness: 3,000 nits (cd/m²)
Contrast Ratio: 1200:1
Viewing Angle: 178° Horizontal / 178° Vertical (IPS Technology)
Liquid Crystal Grade: Industrial High Tni (up to 105°C anti-blackening)
Surface Protection: 5mm Anti-Vandal Ultra-Clear Tempered Glass with Optical Bonding & 99.99% UV Blocking
Operating Temperature: -20°C to +50°C (-20°C to +70°C panel storage range)
Enclosure Protection: IP66 Weatherproof / Maintenance-Free Architecture
Operating Lifetime: ≥ 50,000 Hours (24/7/365 Duty Cycle)
Connectivity: HDMI In, USB, RJ45 Gigabit Ethernet, Wi-Fi

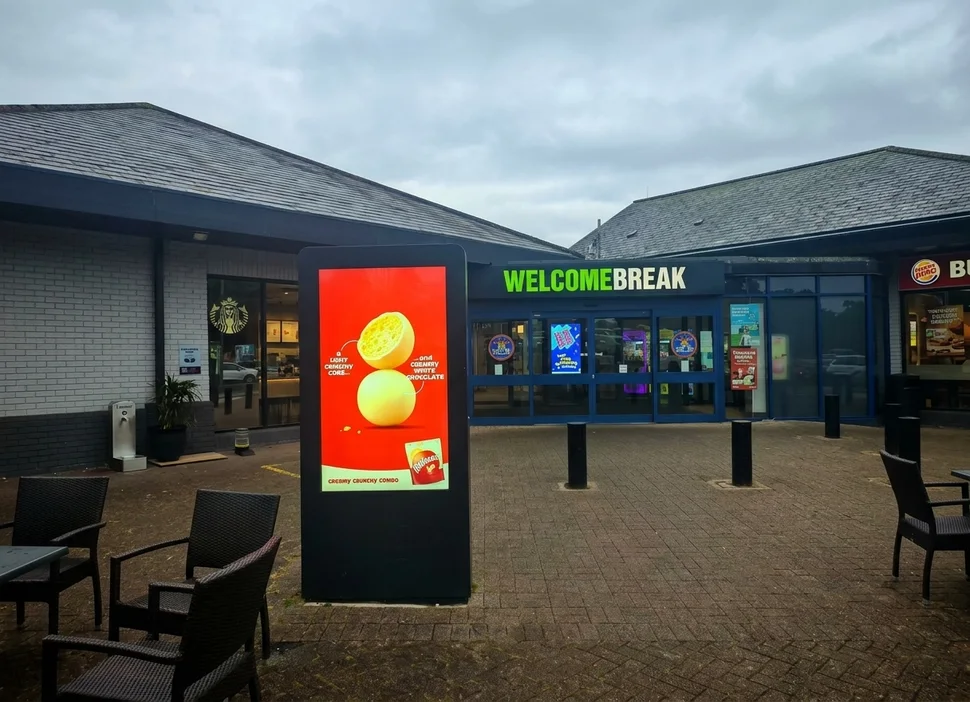

The project uses LL-HBS-55 (4) installed at United Kingdom.
A typical single-unit installation takes one to two hours including cabling and network configuration. Multi-unit projects are completed within one working day.
Yes. The tempered glass surface is sealed against liquids and can be wiped with a standard damp cloth; no special cleaning agent is required.
All tables carry a standard warranty with optional extension. Spare panels and control boards are stocked for long-term service.
Product reference: outdoor high brightness display · more Lumilink project cases
